SCREW COMPRESSORS SPECIALIST Customer Satisfaction Is Our Goal SCS is a member of ISNETWORLD for Safety Audit. In Shop Overhaul.Machine Shop In House.Cast Iron Housing Repair.Balancing.Industrial Hard Chrome Rotor and Seal Journal.Industrial Hard Chrome Piston Rod.Laser Alignment.Fast Turn Around Time.OEM Parts.Fast Respond.OEM Paint or Customer Specification.Emergency 24-7 Service.New Compressors.Preventive Maintenance Vibration Analysis Oil Analysis.Remanufactured Compressors.Exchange Program. Frick RWB II Screw Compressors Repair Parts: FREE SCREW COMPRESSOR INSPECTION Let us determine the extent of your problem, give you a full report, and best plan of action to get your compressor up and running as soon as possible. SCS does offer 24/7 around the clock repairs to eliminate your downtime. In some case you could be eligible for SCS exchange program offering a very quick turnaround. SCS Screw Compressors Specialist offers free screw compressor inspections for the following brands: Trusted Compressor Overhaul and Rebuild Company.

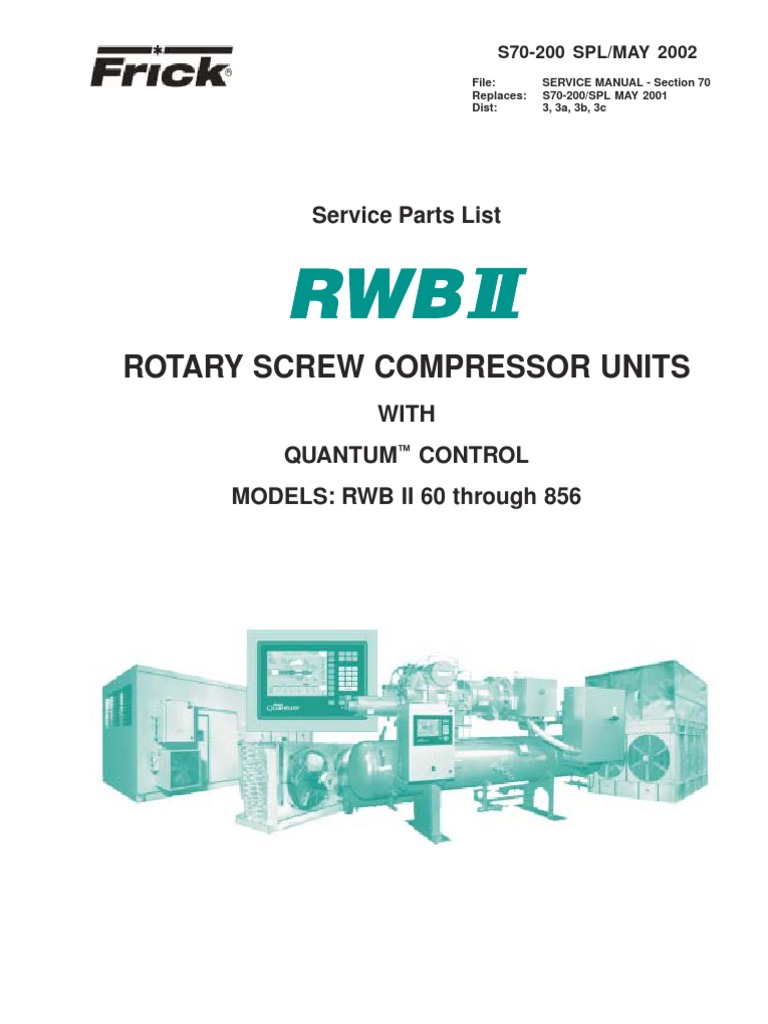

• Frick Rwb Ii Plus Manual

SCS Screw Compressor Repair has been servicing Screw Compressors for more than 30 years. Started working with RECO in 1985, Previous Owner Operator of RCS Refrigeration Components Service and Currently Own and operate SCS Screw Compressors Specialist. IN SHOP OVERHAUL SCS shop is equipped with all necessary tools and equipments - crane, forklift, special tool, etc. SCS tear down table has a building oil rail drain to catch all oil drain from compressor during disassembly so there is no oil on the floor that may cause slip and fall. PPE is always available for everyone.

Safety training are done year round – safety certifications is required to work in the job site. Hotshot Pickup & Delivery Services 24/7 Nationwide Hotshot Delivery Service to and from the location of the compressor needing repair. Frick RWB II Screw Compressors Repair Parts: Engineered and manufactured to meet industrial refrigeration requirements. Designed to assure reliability, accessibility, and ease of service. Compact package allows reduced engine room size and lower construction costs.

High stage and booster applications for all common refrigerants. Frick compressors perform at peak efficiency under varying loads and operating conditions. Volumizer Variable Volume Ratio Control adjusts the compressor volume ratio during operation to the most efficient point, depending upon system requirements. This reduces energy waste caused by under- or overcompression.

Infinite capacity reduction from 100% to 10% (RWF II) or 25% (RXF) of full load is provided by a slide valve control—one of the most efficient methods of capacity control for screw compressors. Frick compressors allow close system control under widely varying load conditions. Screw Compressors Specialist also offers a exchange program for the RWB II Rotary Screw Compressors. This will eliminate that dreaded down time of waiting for your primary or backup compressor to be repaired. If SCS has your down compressor in stock and your exchanged compressor is in repairable condition you may qualify for this program. Please contact SCS to find out more information about this program.

Frick RWB II Compressor Options:. Vyper™ Variable Speed Drive – Changes capacity by varying motor speed. Mounted Starters – Factory mounted, superior motor overload protection, less mounting space, and reduced installation costs. Dual Oil Filters – Ensure continuous operation during service of the primary filter. Isolation valves included.

FRICK RWB II COMPRESSOR ASSEMBLY AND TESTING The Frick bare screw compressors are designed to compress a variety of gases for quality solutions in refrigeration, water chilling, wellhead compression, gas gathering, and vapor recovery. With 38 models ranging from 71 CFM to 5067 CFM, frick gas compressors are available for almost every industrial refrigeration need. The Frick Compressor Package, which features rotor designs that provide the strongest, most efficient operation for their applications. These Frick compressors are designed for use with ammonia, halocarbon, and hydrocarbon refrigerants.

The easily manageable, compact package gives you more space and lowers construction costs to save you money. Manufactured to meet your specific requirements, the Frick Compressor Package is reliable, accessible and easy to service. Frick Repair Parts Compressor Instalation Information: (From Frick Manual) The first requirement of the compressor foundation is that it must be able to support the weight of the compressor package including coolers, oil, and refrigerant charge.

Screw compressors are capable of converting large quantities of shaft power into gas compression in a relatively small space and a mass is required to effectively dampen these relatively high-frequency vibrations. Firmly anchoring the compressor package to a suitable foundation by proper application of grout and elimination of piping stress imposed on the compressor is the best insurance for a trouble-free installation. Use only the certified general arrangement drawings from Frick to determine the mounting foot locations and to allow for recommended clearances around the unit for ease of operation and servicing. Foundations must be in compliance with local building codes and materials should be of industrial quality. The floor must be a minimum of 6 inches of reinforced concrete and housekeeping pads are recommended. Anchor bolts are required to firmly tie the unit to the floor.

Once the unit is rigged into place (See RIGGING and HANDLING), the feet must then be shimmed in order to level the unit. The shims should be placed to position the feet roughly one inch above the housekeeping pad to allow room for grouting. An expansion-type epoxy grout must be worked under all areas of the base with no voids and be allowed to settle with a slight outward slope so oil and water can run off of the base. When installing on a steel base, the following guidelines should be implemented to properly design the system base: 1. Use I-beams in the skid where the screw compressor will be attached to the system base. They should run parallel to the package feet and support the feet for their full length.

The compressor unit feet should be continuously welded to the system base at all points of contact. The compressor unit should not be mounted on vibration isolators in order to hold down package vibration levels. The customer’s foundation for the system base should fully support the system base under all areas, but most certainly under the I-beams that support the compressor package. When installing on the upper floors of buildings, extra precautions should be taken to prevent normal package vibration from being transferred to the building structure. It may be necessary to use rubber or spring isolators, or a combination of both, to prevent the transmission of compressor vibration directly to the structure. However, this may increase package vibration levels because the compressor is not in contact with any damping mass. The mounting and support of suction and discharge lines is also very important.

Rubber or spring pipe supports may be required to avoid exciting the building structure at any pipe supports close to the compressor package. It is best to employ a vibration expert in the design of a proper mounting arrangement. In any screw compressor installation, suction and discharge lines should be supported in pipe hangers (preferably within two feet of vertical pipe run) so that the lines won’t move if disconnected from the compressor.

See Allowable Flange Loads table. Frick Repair Parts and Troubleshooting Compressor: (From Frick Manual) Troubleshooting the RWF II Compressor SYMPTOM PROBABLE CAUSES and CORRECTIONS EXCESSIVE NOISE and VIBRATION Main oil injection valve may be closed. Main oil injection valve may be open too far. Bearing damage or excessive wear. CONTACT Frick Factor or Frick service. Slide valve/slide stop out of calibration (over- or under compression) Coupling loose on shaft.

Tighten coupling. Replace if damaged. If motor or compressor have been reinstalled, check that installation done according to 070.660-SM Refrigerant flood-back. Correct system problem. SLIDE VALVE and/or SLIDE STOP WILL NOT MOVE 4-way hydraulic control valve failed. Repair or replace. Slide stop indicator rod stuck.

Contact Frick Factor or Frick service for assistance. Check both S.V. Feedback devices for wiring and resistance. Compressor must be running with sufficient oil pressure. Unloaded piston stuck.

Contact Frick Factor or Frick service for assistance. Slipper seals worn out or damaged. Contact Frick Factor or Frick service for assistance. Troubleshooting The Demand Pump System SYMPTOM PROBABLE CAUSES and CORRECTIONS PUMP WILL NOT PRODUCE ENOUGH OIL PRESSURE TO START COMPRESSOR Check pump rotation. Check that service valves are open. Filter cartridges may be blocked.

Check PSID across filters. Strainer may be blocked. Oil pressure regulator set too low or stuck open. Readjust or repair. Pump worn out. Repair or replace. OIL PRESSURE RAPIDLY DROPS OFF WHEN COMPRESSOR STARTS RESULTS IN COMPRESSOR DIFFERENTIAL ALARM Main oil injection throttling valve too wide open or oil pressure regulating valve improperly adjusted.

Readjust both valves. OIL PRESSURE FLUCTUATES Liquid injection overfeeding or refrigerant flood back from system. Make necessary adjustments or corrections NOISE and VIBRATION Pump strainer blocked.

Liquid refrigerant overfeed. Adjust liquid injection. Pump worn out.

Repair or replace. GREASE LEAKS FROM VENT PORT IN THE SIDE OF THE PUMP BODY Normal leakage which will cease after initial operation. Black oil leaking from this vent indicates oil seal wear or failure. If leakage exceeds normal allowable rate of 7 drops per minute, replace seal. OIL PRESSURE DROPS AS HEAD PRESSURE INCREASES Normal behavior.

Set main oil injection and oil pressure for maximum head pressure condition. MAIN FILTER PSID IS TOO HIGH Filters clogged with dirt. Oil is too cold. Allow oil to warm up and check again. Service valve on filter outlet is partially closed. Open valves fully. Troubleshooting The Oil Separation System SYMPTOM PROBABLE CAUSES and CORRECTIONS GRADUAL OIL LOSS WITH AN OIL LEVEL IN THE COALESCER SECTION SIGHT GLASS Maintaining too high an oil level, lower level.

Refrigerant carryover or liquid injection overfeeding, correct operation. Loss of suction superheat. Adjust evaporator feeds.

Contaminated oil, damaged or not seated coalesce filter elements. Replace oil charge and coalesces. Coalesce return valve closed. Open return valve. Coalescing oil return line strainer blocked.

RAPID LOSS WITH NO OIL LEVEL IN THE COALESCER SECTION SIGHT GLASS On shutdown, compressor unit suction check valve did not close. Repair valve.

Suction check valve bypass valve open too far to meter flow. Coalesces loose or not seated properly. Correct or replace. On economized unit: economizer check valve not working. Repair or replace.

Frick Rwb Ii Plus Manual

Economizer check valve not in automatic position or manually opened. Place in auto position. Troubleshooting The Hydraulic System SYMPTOM PROBABLE CAUSES and CORRECTIONS SLIDE VALVE WILL NOT LOAD OR UNLOAD Solenoid coils may be burned out.

Test and replace if necessary. Valve may be closed. Open hydraulic service valves.

Solenoid spool may be stuck or centering spring broken. Check outputs 2 and 3 and fuses. Check LED on coil. If lit, there is power to the coil. Solenoid may be actuated mechanically by inserting a piece of 3/16' rod against armature pin and pushing spool to opposite end. Push A side to confirm unload capability.

If valve works, problem is electrical. SLIDE VALVE WILL LOAD BUT WILL NOT UNLOAD A side solenoid coil may be burned out. Test and replace if necessary. Dirt inside solenoid valve preventing valve from operating both ways. Check LED on coil. If lit, valve is functioning mechanically.

Problem is electrical. Solenoid may be actuated mechanically by inserting a piece of 3/16' rod against armature pin and pushing spool to opposite end. Push A side to confirm unload capability. If valve works, problem is electrical.

SLIDE VALVE WILL UNLOAD BUT WILL NOT LOAD A side solenoid coil may be burned out. Test and replace if necessary. Dirt inside solenoid valve preventing valve from operating both ways. Check LED on coil. If lit, valve is functioning mechanically.

Problem is electrical. Solenoid may be actuated mechanically by inserting a piece of 3/16' rod against armature pin and pushing spool to opposite end. Push A side to confirm unload capability. If valve works, problem is electrical. SLIDE STOP WILL NOT FUNCTION EITHER DIRECTION Solenoid coils may be burned out. Test and replace if necessary.

Solenoid service valves may be closed. Manually actuate solenoid.

If slide stop will not move mechanical problems are indicated. Consult Frick factor or Frick service.
