I have said in an other thread, that I would like to see more pilot- and owner reports. I think I’ll start with the aircraft I did my flight training for the PPL(A) in. If you have questions, don’t hesitate to ask. If you are flying a Morane, chime in.

Many European pilots have seen them or even flown in them, but since they seldom can be found in rental or aeroclub fleets, most new pilots only know them from the distance: The Morane-Saulnier MS880 and MS890 series. It has been said that people either love them or hate them, but most critics have never flown them. As a European pilot you should at one point fly one of those birds that in some bars get vilified as “French Revenge”. MS894A As many general aviation aircraft series, Moranes come in very different “flavours” and engine options ranging from the 100hp MS880 to the 220 hp MS894 Minerva. You can fly them with a stick or a yoke, with fixed and constant speed props, with normal power levers and with a throttle quadrant, with a conventional gear or with a tricycle, and some finish genius has even put a Morane on floats. There are three different tank sizes, two different strut types, different brake types, electric and manual flaps, and innumerable types of lighting installations and panel setups, fuel systems, canopy mechanisms and wing tips, tow hooks, rudders and trim tabs. It seems that no two Moranes are alike and – although having performed quite a few pre-purchase inspections – I haven’t met two similar aircraft even if they are called by the same model designator.

For a quick overview over the naming, you might want to read the. To name all varieties and differences would go way beyond the scope of this article. At some point in history, Morane-Saulnier has built a ground attack aircraft based on the Minerva, powered by a Lycoming O-540.

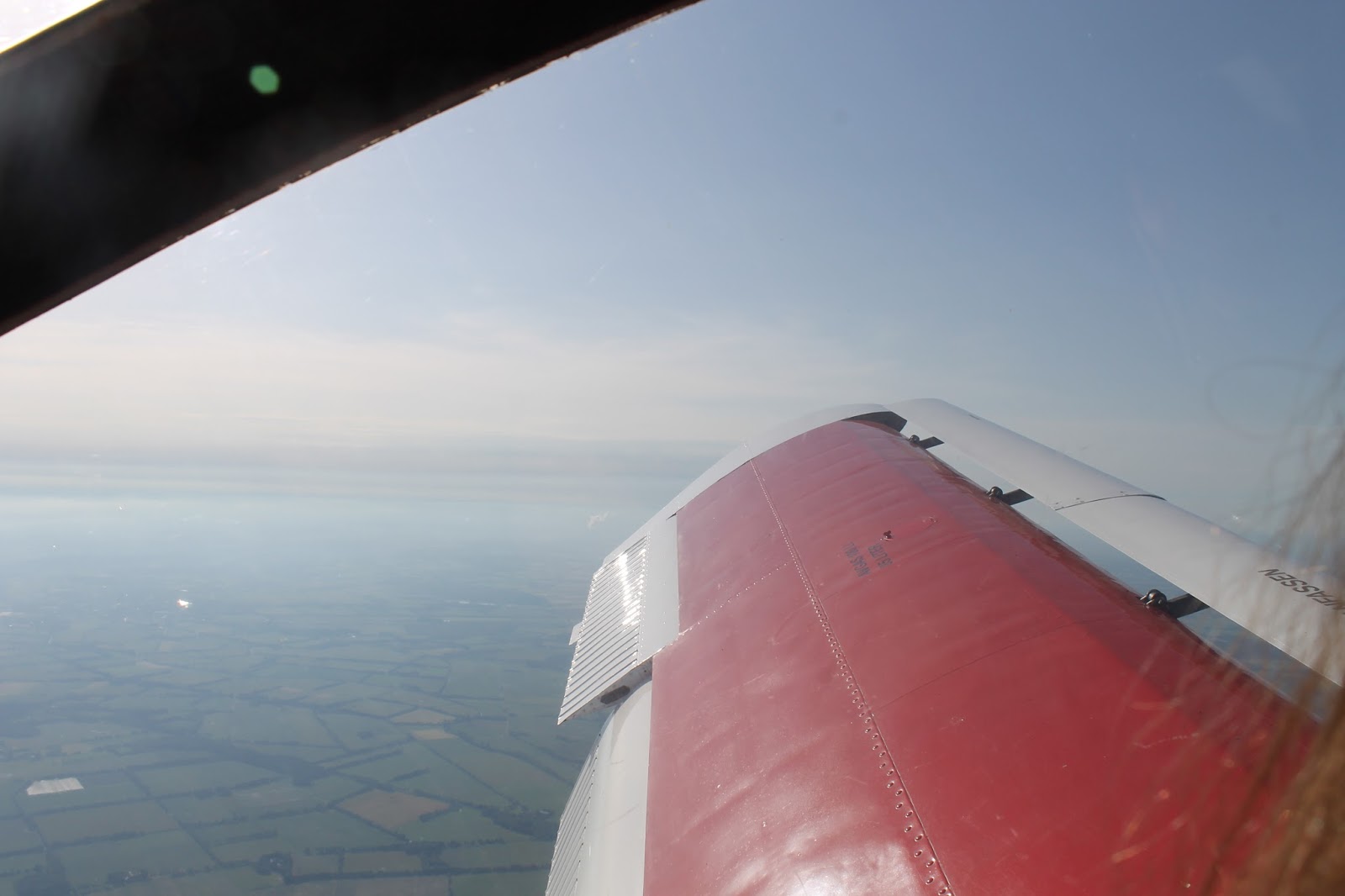

Morane Guerrier. But there is a very dominant feature that unites all Moranes: The leading edge slats. They are automatically operated by air pressure and damped by a simple dashpot.

The slats are linked by a cable and operate simultaneously. The slats do not only control airflow over the leading edge, they add wing area to the aircraft, so that slow flight is a very natural habitat of the Morane. MS894A with open leading edge slats These slats, the huge empennage and flaps and the trailing link gear scream “STOL”, especially with the big engines. Getting in and out of the Morane is easy through the huge sliding canopy. However, you want to be quick when it rains. With the very shallow instrument panel and a big canopy you get a great visibility out of any Morane. View out of an MS880.

You need to experience this by yourself to appreciate it. There are some Moranes where one size fit’s all.

So neither the seat nor the pedals can be adjusted. I have 196 cm and I do fit, although there are more comfortable aircraft, I have to admit. For normal sized people the Moranes work quite good and especially small people like them for their great visibility in contrast to the Cessna 172s or Piper Archers. My family operates a MS894A Minerva with the 220 hp Franklin engine together with a friend, who also owns an MS883 with a 115 hp Lycoming O-235. I have ferried the Conti O-200 powered MS880 of a friend and our aero club used to operate an MS893A with the well known Lycoming O360. My Uncle used to own an MS892 with a 150hp O-320 and later an MS893E-D with a Lycoming O-360 and a yoke instead of a stick, so I might know a thing or two about these planes. Flight Performance The huge variety of different airframes and engines makes it impossible to give a unified answer to the question of the flight performance of the Moranes.

I will describe some benchmark figures for the planes I have actually flown. MS880 Small but heavy hauling: the MS880 of EuroGA-user @ermajn. I was instructing his ferry pilot Mario on the Morane.

The smallest Morane is powered by the well known Conti O-200. Although she has a rear bench, it is only certified for 110 kilos and so the MS880 is not a four seat aircraft, rather than what you would call a “2+2”. This MS880 has a real useful load of 288 kg with two 48 liter fuel tanks. As in every O-200 powered aircraft, fuel burn is roughly in the area of 19 to 23 liters per hour, depending on required power. MS880 in cruise There are versions with 85 liters capacity per side, giving up to 8 hours endurance.

On my ferry flight from Flensburg to Rheine she made honest 95 KTAS at 2500 RPM in ISA-5 and roughly 80 kg under gross, so she isn’t even as slow as the STOL characteristics might indicate. Ground roll on an ISA day in MSL the manual mentions about 170 Meters for a normal takeoff on concrete. That sounds about right and can be reduced with the short field takeoff method described later. Climb is not so enthusiastic and on ISA/MSL around 500 ft/min.

With this the MS880 is on par with a C150 or BO208 with the same engine. In fact, I would consider the MS880 as “the better C150” in many disciplines. MS883 MS883 take off The MS883 is to the MS880 what the C152 is for the C150. A slighter higher power output, a slightly heavier airframe, a slightly updated panel but the same character. Virtually all performance data is similar to the MS880.

She won’t cruise faster due to the heavier airframe and bigger rudder, she will be in the air a tad earlier and consume a liter more Mogas per hour. She too comes with 46 or 85 liters per wing and is capable of some astonishing endurance. MS893A MS893A in cruise The MS893A is a complete different animal. The airframe is a bit heavier than with the MS880 and MS883 but she has a considerable better power to weight ratio. Since I mostly flew her with a climb prop for aero towing, the data I have seen are not that overwhelming.

She wouldn’t cruise much more than 95 KTAS but climb like a homesick angel with over 1400 ft/min when lightly loaded. This year I have ferried a MS893A with a more coarse pitched propeller and she was cruising fine with around 100 kts at leisurely 2450 RPM.

Fuel consumption is – in line with all the other Lycoming O-360 – around 35 liters Mogas per hour. MS894A MS894A Minerva The Minerva has the smooth Franklin 6A-350 six cylinder 220 horse power engine that would even be a nice engine for the M20J. But although she has more power than the M20J and is on par with the early Bonanzas, she is no friend of speed. She will happy cruise at 110 KTAS with the Hoffmann three blade prop on the nose and the two Gomolzig silencers under her belly, consuming around 35 liters Avgas. That is how we calculate cruising with the MS894A.

Her two 96 liter tanks give her some practical endurance and she now is very quiet. But you can’t expect her to meet book value. But she will carry easy 4 adults with her 464 kg payload. And she does this easy out of small and high airfields.

Socata Rallye 220

If lightly loaded you can get the ground roll notably below 100 Meters with the right technique. For further data, I have uploaded the Skydemon aircraft files for the MS880, the MS883 and the MS894A on the. Those data are book values. You might find some manuals somewhere on google, too. Preflighting and ground handling When you preflight a Morane, most items are pretty straight forward and do not differ much from other GA type aircraft. But there are a couple points to keep in mind.

First, you test the interlink between the slats with pulling them out or pushing them in. The slats are guided and should stay within the rollers. Like the flaps, the slats do have quite some play and that is normal for a Morane.

One of my instructors used to say: “If she’s not rattling, she is kaputt”. Of course, there are limits to this. All the play should not allow the rollers jump out of their guides. Moranes have a large dihedral The large dihedral of the Moranes make a visual check of the fuel level a bit tricky.

The tanks are long and you can only actually see fuel, if they are at least half full. The long tanks with 85 or 96 liters each have two fuel capacity senders per tank and they often are not very accurate, quite like all the other GA aircraft of that era. So fuel planning can become a bit tricky in your morane and I advice never to start a day without knowing you have or had at least half the tank fuel inside. Fuel cap of an MS893A The fuel cap is made out of rubber and has a venting hole drilled into it. You should check that this venting hole is free. The rubber cap is then secured by a simple tank cover.

Tank cover on a Morane wing A very important topic in preflighting the Moranes is to check the travel of the elevator, especially if they have been parked outside and the stick was secured from inside the cockpit. The Moranes have very powerful and big elevators and if parked outside in windy conditions, they can develope quite some force. If the stick is blocked, the aerodynamic forces on the elevator are high enough to bend a bell cranc in the elevator actuation system in a way that prevents full up elevator by stick movement. Of course, that is a huge no-go for flying. The best thing to secure a Moranes empennage is by clamps directly at the moveables. Unsteerable free castor nose wheel The Moranes are taxied via differential braking, the nose wheel is not steerable, just like on the Lake, Katana or DA40. It allows for a very tight taxi radius but makes correct aileron input important for taxiing in strong winds.

The big rudder of the Moranes make them very good weather vanes, but become effective at very low speeds, so during a fast taxi direction can be controlled solely via rudder without the need to brake. During the takeoff run, usually the rudder comes alive early enough to be able to control direction. One can correct the direction in heavy winds with tipping the breaks slightly.

If you need to manoeuvre the aircraft with the tow bar, be sure no one wants to “help” and pushes mid-wing. If you need assistance getting the plane uphill backwards, you either have them push at the cowling, pull on the aerotow hook (if installed) or pull her up nose-first and turn around afterwards. Usually you can’t control the aircraft when someone tries to help at the wings. When maneuvering a plane into a hangar, eyes usually are more important than muscle anyway.

Better handled alone: free castor nose wheels backwards. Flying the Moranes Once you have accustomed to the individual cockpit of the Morane – as I have said, you have to search to find two similar ones – and got used to taxiing the Morane, the normal take off is similar to any other aircraft. You take off without flaps on concrete and with 8° flaps from grass for a normal take off.

You lift the nose at around 70 km/h (most Moranes have metric ASIs) and let her fly off at around 95 km/h (in the MS880) or 110 km/h (MS894). If you fly a MS883 or MS880 you will find the best climb at 135 km/h with around 500 ft/min. The Minerva will deliver around 1000 ft/min at 160 km/h best climb speed. During rotation usually the slats are pulled open by the peak suction on the leading edge and when passing best angle of climb speed they will retract. Best rate of climb is flown with retracted slats. The best angle of climb is archived in the MS880 at 95 km/h and in the MS894 with 125 km/h with open slats. Especially the low powered Moranes do accustom the pilot to fly the correct speeds, but with the good working trim this is not a huge problem.

Two Throttles, two sticks, two sets of brakes, electric flaps. There is a distinct short field takeoff method described in the manual, that requires a bit training. You basically start your takeoff run with flaps retracted and deploy them to the whole 30° once you passed 50 km/h. Then you choke her into the ground effect. At this speed the Morane will not climb out of ground effect, so you slowly retract the flaps back to 8° while gaining speed in the ground effect. This way you can lift off the Minerva in under 100 Meters, although you will need some space to clear obstacles. It works better with manual flaps than with the electric ones.

You can set the manual flaps in 8° and 30° with a lever between the seats. One throttle, two sticks, elevator and rudder trim, manual flaps. Note the direction of the RPM indicator. In the air, most pilots are surprised about the responsiveness of the aileron and rudder. The Moranes lend themselves to tight turns, although they are not squirrely. Elevator forces are somewhat heavy and the bigger Moranes have a servo tab to aid in manoeuvring, but still there is a noticeable difference in stickforce if you compare ailerons and elevators. Some of the aircraft are certified for gentleman-aerobatics and intentional spinning, but some are not and for this I advise strongly to follow the appropriate POH for the exact model at hand.

Note the knee positions of me (right, 196 cm) and of my wife (pilot, 170 cm). Note also the great visibility even in a steep climb. A very nice feature during summer is, that you can open the canopy in cruise. There are two different canop tpes. One type, usually the smaller canopies, has just a supporting roller on the back.

These can be opened about 3-4 cm in cruising flight. With the bigger canopy, the rear is guided in a notch and has a brake on the left hand roller. That canopy can be opened completely in flight, as long as you stay below 150 km/h. With this canopy, the Morane is certified for dropping skydivers. Open canopy of an MS894A Stalling a Morane is quite interesting.

With the engine idle and the huge flaps set at 30° the Morane will happily mush into a “tin parachute mode” with around 500 to 700 ft/min sink speed and a forward velocity of 75 to 95 km/h depending on the model and loading. That will definitely be a survivable option to handle an engine failure at night or over an overcast. The slats act as a stall warning device, but you can feel the buffeting when approaching the stall. Stall attitude of the MS894A The aircraft mushes a bit and you do feel the buffets from the wing, serving as stall indication.

With the low powered Moranes it is possible to maintain altitude during a power-on stall, if not too heavily loaded. With the Minerva and a light load, even cruise power gives an impressive rate of climb during a power on-stall. Power-on stall with cruise power – and a solid 600 ft/min climb. Moranes are comparatively draggy aircraft and so the approach can be set up relatively high, if you prefer. The MS880 will be flown with 100 to 110 km/h on final approach and depending on the load might require a shot of gas during flare. Touchdown is normally done with around 90 km/h.

The trailing link gear almost makes it too easy to do a nice landing, it is very smooth and if you have some experience on the Moranes, you can fly onto the ground without your passengers notice touchdown fairly easy. The struts are not that sturdy as the Cessna steel spring, but can take quite some beating. The normal approach in the MS894 is flown at 140 to 120 km/h, touching down with approximately 95 to 100 km/h. MS880B showing her “barn doors” In a normal landing the slats will deploy during roundout. If you like to use the short field capability of the aircraft, you need to approach with open slats at around 90 km/h in the MS880 and 100 km/h in the MS894A.

You will need power to control a normal glide slope. Reducing the airspeed in the round out you can then control the landing with a “chop, drop and stop” technique. A slow power-off approach is possible if the pilot is good at timing the roundout and adding a shot of power then to arrest the descent.

Missing the point of adding power will feel a bit like being shot down, though. ASK-21 behind the Minerva If you operate a Morane as (occasional) tug to tow gliders, be sure to check the correct trim position prior take off. If the person who attaches the towrope to the aircraft tries to lift the elevator, he can move the trim tab into the full nose-heavy position. We have discovered this during aerotow training and we pulled on the stick with two pilots to overcome the trim forces in that moment. Maintenance As with many European aircraft you will need two tool sets because the airframe is metric and the engine imperial. Maintaining the engine and most of the instruments is pretty straight forward as they are industry standard.

Except perhaps for the Franklin 6A350 in the Minerva, parts are usually no problem, although Franklin is operative (again?) and had a booth on AERO2016. Our Minerva was grounded for over a year because of a fuel pump we could not locate after the old one had gotten an AD. Most of the airframe parts can be repaired with procedures in the very good repair manual or, due to all of the Moranes being ELA1 aircraft – AC-43.13. Furthermore there are many airframes being chopped and some parts can be located on the usual sites (planecheck, ebay, afors, etc.) or in the Morane-forum. Many other parts like handles, lights, fittings, come from french car manufacturers and can be found online.

The Moranes have two kinds of struts, the ERAM and the SOCATA types. For filling them with nitrogen you will need a special adapter, but other than that no special tools are required for Morane maintenance.

The adjusting of the drum brakes can be a PITA, but many Moranes have disc brakes that are much easier to maintain. Easy access to the rear instrument panel through a separate cover panel You can access all maintenance relevant parts of the aircraft with comparative ease, especially the back of the panel (not so unimportant with new avionic requirements). The Moranes have a history of corrosion problems, so you need to inspect the inner values thoroughly with a mirror and a flashlight.

Regular treatment with ACF50 is advised. One additional item for maintenance are the bearings of the slats. Make sure they are allways rolling, otherwise they will wear off and you need to replace them. They need to be manufactured and it can easily be avoided. There are two “philosophies” with these rollers.

I personally like to keep them dry and clean, just treated with a bit graphite. This way they don’t collect as much dust. Others prefer to have them greased to keep the moisture out of the bearings.

If you grease them, be sure to exchange the grease on a regular basis, especially if you are flying often to grass airfields. All maintenance tasks described in the manual can be released to service within the scope of pilot/owner maintenance. Prepurchase on a Morane If you are looking at a Morane to buy, you will get much aircraft for your money. Almost all comparatively powered aircraft are much more expensive and some of them are not even close to the handling qualities and visibility you get when flying a Morane. Sure, it lacks ramp appeal for the most parts, but I have yet to meet one to fly a Morane and not like the aircraft. I think it is a well kept open secret in aviation, if you get my drift.

There usually are two problems with well kept secrets. One is the difficulties you may face when you want to sell the plane. So if you are looking for an intermediate aircraft, a Morane is probably not for you. The other problem with well kept secrets is, that you need to take a close look at the airframe at hand. The monetary difference between a worthless corroded piece of beautiful formed metal and a nice aircraft is very small. A good MS880 goes for 7 to 10 k€, in mint condition I wouldn’t pay more than 15k€.

But often you get an offer for something rotten only 1000 or 2000 € below. Some Moranes, especially MS893 and some MS894 have lived a life in aero towing and have a considerable amount of takeoffs and landings.

I have seen MS893s change hands for under 10000€, but for a reasonable conditioned MS893 you will pay something between 15000 and 20000€, depending on times and condition. I assume you will be looking at the engine, avionics, interior, paperwork and general appearance like you would do on any other plane, too.

Then there are some typical items to look for in a Morane. The first thing is the engine mount. Some Moranes have steel tubings, but certain aircraft have a riveted engine mount and nose gear struts.

Socata Rallye 235 Performance Specifications

Those tend to develop cracks around the rivets and on some models I have seen signs of bearing of the rivet holes. Moranes have the reputation to be prone to corrosion, but that is not entirely true. There are many airframes treated with zinc-chromate, but not all of them. In General Moranes are not better or worse than other treated or untreated airframes. Still: In the cabin, remove the side panels on the rear bench and take a closer look at the main spar carry through. We have found some corrosion on some models in that area.

You need to remove the back of the rear bench. This is done with 8 normal screws. It gives you acess to the back fuselage.

The “keel” is, of course, a known item prone to corrosion. You further would want to check the bell cranks of the aileron control. They are located directly behind the upper rear bench, outboard.

They are often neglected during maintenance. You can take off the rear fairing with a couple of screws and check the rear fuselage for corrosion and bucklings. Moranes can be landed tail first and this can be seen at the rear fuselage skin.

Check the travel of the elevator with the stick. I have seen Moranes under offer where you could move the stick full fore and full aft without even moving the elevator. Especially if the aircraft has lived outdoors, this is important. You will need a 10mm wrench (for most of the Moranes) to take off the wing tip fairings. You definitely want to look inside, because the spar caps can be corroded and that will not be tolerable (see picture).

Corroded main spar caps of an MS893A Especially with Moranes that used to be trainers or tug planes, you need to take a look at the rigging. Fortunately this is quite easy with the Moranes. Close the slats and take a close look at the clearance of the slats. They should be constant along the span on top and bottom.

The Slats can be adjusted with washers at their support, although this is a sign of a previous damage or exchange of slats. On the ailerons you can see two stops for the down position of each aileron. They need to touch the aileron with the same angle of deflection, so that both stops are active. If not, this may indicate a misrigged aircraft. Of course, the aileron must not contact the hinges in the “up” position. Aileron stops When the flaps are extended completely you can inspect the main landing gear attachment to the wing. The ribs directly left and right of the main landing gear should have a doubler installe.

On some aircraft, completely random in serial number, construction year or model, these are missing – and noone knows why. However, the models with the missing metal tend to bend around there after hard landings. Slightly bent main landing gear of an MS893 Hard landings can – and that is no suprise – bend the trailing link of the main landing gear. This should be inspected prior purchasing the Morane.

Conclusion All in all I think the Morane is a widely underestimated aircraft. It delivers much aircraft for the money and are a real alternative to the wide spread Cessnas and Pipers. They offer great visibility and very nice and direct handling and are cheap to operate. They are not fast, you need to sit down before you buy (one size fit’s all on many models) and they somewhat lack ramp appeal for the most pilots.

So it is a plane easy to buy and hard to sell, but you should seek the opportunity to fly one, at least for once. RobertL18C wrote: might you have photos of the tail wheel version? Only what I have found in the Net. Here is a Rallye 235. Essentially the Minerva with a Lycoming O540 and if I remember correctly a yoke. It was for sale some time ago. I have only seen one of theese live once in Oerebro.

Then there was an agricultural version with a huge spray tank installed: And some Finnish People have made a major change to an MS893: And while I am at it, here is the Finnish Rallye on Floats, but word has it that she doesn’t fly anymore. Well Done, nice write up on the series.

They are amazing fun to fly. Ireland was the home of the Rallye, and the distributor used to fly them over in formation then end up selling 3-4 at time on a visit over here. Good point about the bent landing gear legs. I’ve seen some people flying them literally with one leg pointing east and one pointing west!

The dissimilar metal corrosion at the attach fitting for the gear legs can prevented with Duralac if the last owners maintenance was good. Canopy rails can swell which is a another tell tale, and the aileron double ribs also need to be looked at in under the ailerons. I see them as a future classic. Thank you for a great write up. Brings back memories of completing my PPL on the Rallye at Air Touring Club at Biggin Hill in the late 70’s. As they were the UK distributor, there was always a stream of new aeroplanes. I also met Maurice Serrier who did some great demos of the capabilities – and also the TB series which we had at Air Touring.

I remember on my GFT (General Flying Test), when spin revovery was still required to be demonstrated, having to get the examiner to have several goes at getting a wing to drop so I could do the recovery!

Rallye PIREPS This page is for reports from pilots on flying and maintaining Rallyes. Fuel Pump Fu This is the new sliding vane pump that PZL has produced to replace the 4886 diaphragm pump which is the subject of the Emergency Airworthiness Directive of August 2000. As you can see, the new drive unit bolts onto the rear of the engine, replacing the old drive unit with its cam and lifter assembly and pump receiver housing entirely.

Click here to see the that started it all. Nosewheel Shimmy Many Rallye pilots have experienced shimmys on landing.

These can be quite violent. The noseleg and nosegear and nosewheel axle are the subjects of several Airworthiness Directives. The Rallye List has an extensive thread on shimmy dampers, internal pump jets, tire pressure and ground handling technique. Do not take landing shimmy lightly. As time permits, all applicable ADs will be posted in the section of this website.

Oleos. SOCATA oleos are all that are now available. They can be rebuilt with parts kits from Socata.

Upon completion of rebuild, introduce 153 cc of fluid thru the Shrader valve at the top of the shock and then replace the valve core. Then add nitrogen - 479 psi or 33 BAR to mains and 522 psi or 36 BAR to the nose unit. (With technical thanks to George Johnston and Lloyd Davies.). Slat dampers The heavier airframe Rallyes have air dampers (called “dashpots” in the manual) that are designed to prevent slats from deploying or retracting too forcefully. These units are located inside the wing and are accessible with flaps extended. Accessible is a very relative term.

The dampers have a rod with two pistons inside the damper housing. The rods are attached to the bell crank assembly that ties the slats on each wing together. When the slats move quickly, the pistons damp the action by forcing air through two tiny holes. For proper operation, the seals around the pistons must be tight agains the tube walls. The manual calls for lubricating the pistons with several drops of lubricant to keep the seals pliable. This in turn requires a method for introducing the lubricant while actuating the slats.

Best done by removing units and immersing in lubricant and working the pushrods. The idea is to suck some lubricant into the tubes through the tiny air holes. Second best way is with two or even three people and a lubricant with a long, flexible tube that can squirt lube into ends of tubes as someone manually works the slats and hope the lubricant makes its way on to the seals. Continental Corrosion Recently we had a problem with oil seepage just ahead of the carb on our 0-300 Continental. Removal of the oil sump showed pitting and corrosion around the front drain plug area. The casting was being eaten away by corrosion. The air induction port which is cast into the sump has a 3/8 inch hole on each side of it for oil to drain back into the main part of the sump.

Moisture tends to gather in the front portion of the sump. We found there was a couple ways to go to repair this problem. We could have the sump bead blasted with plastic media and repaired with epoxy.

Or, we could purchase a serviceable sump. The price for a used sump was anywhere from $700 usd to $1750 usd. A new sump was quoted at $3000 usd. Probably a good preventative maintenance tactic would be to remove the front drain plug and use a scope to have a look during the annual. We've since heard that this is also a problem on the older Cessna 170 and 172's. Regards, Arnie Meyer MS885 C-FOTI Rudder Pedal Rods - from George Johnston Back in the 70's Socata realised that there was the potential for those rods to bend and break. They repaired this by redesigning the connection between the pedal and the rod.

This was published as SOCATA service order # 120, CR 27-13 ( I do not know what that means),modification #123. This modification required replacing the existing eye bolt and standard hex nut with an undercut eyebolt and a guide nut ( quite different from a standard hex nut). Now SOCATA identify Rallyes in two catogaries, light airframes and heavy airframes. Light airframes are: MS.880.B, MS.881, MS.883, MS.885, MS.886, MS887, 100.S, 100.ST, 150.T, 150.ST.

Heavy airframes are: MS.890, MS.892.A.150, MS.892.E.150, MS.893.A, MS893.E, MS.894.A, MS894.C, MS.894.E. Now, light airframes with serial number 2622 and above and heavy airframes with serial number 12622 and above were produced at the factory with the modified eye bolts and should be OK. Light airframes with serial number 2621 and lower and heavy airframes with serial number 12621 nd lower should have been modified back in the 70's and a notification put in the log book. These airplanes should be checked and modified now if required. It's easy to tell, just push the outside pedal all the way forward and feel the eye bolt and the rod, there should not be a standard hex nut.

If there is a hex nut then the parts you require are, and here again you must refer to the serial number as there are different threads on the rudder rods. Light airframes up to ser.# 2453 and heavy airframes up to ser.#12453 had rods threaded with 'SI' pitch in which case you must use the undercut eye bolt #880.27.0.404.0 and the guide nut #880.16.0.059.0.

Light airframes from ser.#2454 and heavy airframes from ser.# 12454 have 'ISO' threads and require undercut eye bolt #880.27.0.402.0 and guide nut 880.16.0.185.0 Note these may well be out of date part numbers but SOCATA should be able to find the right ones. Question, has any one with a Rallye with a ser.# 2622 and 12622 or above experienced rudder rod breakage? Please let me know.
